55″ Freestanding PCAP touch screen poster
Introducing the 55″ Freestanding PCAP touch screen poster, which is available in either black or white.
Combining the most responsive and sensitive PCAP touch technology and the internal Android media player to offer a fully integrated all-in-one solution.
3 year warranty
For bulk ordering, please get in touch for pricing on +44(0) 8450 944954
*** Available in either black or white, please specify colour ***
PCAP TOUCH
UPTO 10 TOUCH POINTS
INTEGRATED ANDROID MEDIA PLAYER
ALL-IN-ONE SOLUTION
INTEGRATED SPEAKERS
24/7 COMMERCIAL GRADE
ALL-IN-ONE SOLUTION
The internal HD Android media player allows content to be uploaded and updated remotely using embed, a cloud based digital signage software, or manually using a USB stick and the plug and play feature.
PCAP TOUCHSCREEN
State of the art PCAP (projected capacitive) technology provides the most responsive and sensitive touch experience. A sensor grid is sandwiched between the cover glass and LCD panel, which detects a touch and the co-ordinates of that touch point. PCAP is not affected by dust or debris on the screen, and allows upto 10 touch points.
BUILT FOR PUBLIC AREAS

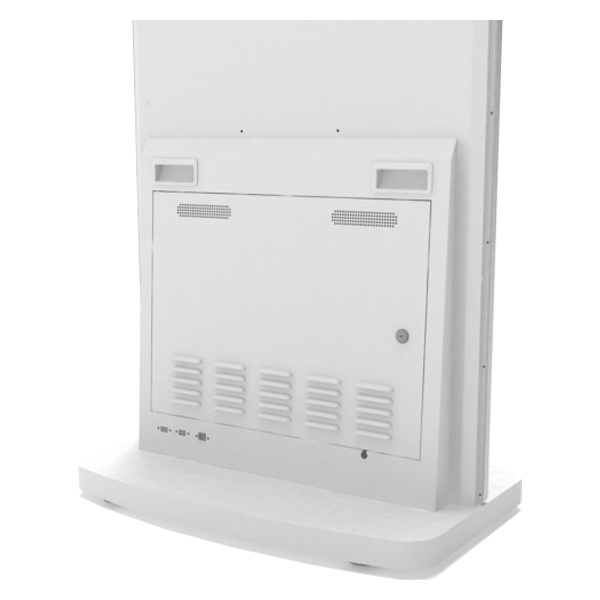

This panel is protected by the tempered glass and steel enclosure which has no buttons, no controls, and no logos or branding on display. The aluminium surround with rounded corners gives the poster captivating tablet-like aesthetics and protects the internal components from potential damage.
ADDITIONAL SOFTWARE
Get the most complete digital signage package by registering this device with embed. The cloud based software lets users take control of every aspect of their content with the ability to schedule, publish and update remotely.
- Create powerful and engaging content via the ‘WYSIWYG‘ editor
- Schedule content to play under criteria such as day, date, time, tags, weather and more
- Manage devices via an easy to use online dashboard
- Enhance content with plugins and widgets such as weather, twitter and rss feeds at no additional cost
- And much, much more…
Get started with a Free 28 day trial of embed.
DOWNLOADS
SPEC SHEET
TECHNICAL DRAWING
SPECIFICATIONS
| Weight | 70 kg |
|---|---|
| Dimensions | 744 × 41 × 1912 mm |
| Diagonal size | 55" |
| Display area | 682 x 1211mm |
| Footprint | 744 x 500mm |
| Operating time | 24/7 |
| Brightness | |
| Resolution | HD (1920×1080) |
| Viewing angle | 178° |
| Aspect ratio | 16:9 |
| Contrast ratio | 5000:1 |
| Connectivity | HDMI, RJ45, RS232, USB, VGA, WiFi |
| Audio input/ output | Audio socket (3.5mm) |
| Speakers | 10W, 4Ω |
| Power consumption | 150 (w) |
| Operating temperature | 0℃ to 50℃ |
| Operating system | Android 7.1 |
| Internal memory | 8GB |
| Touch functionality | PCAP (projected capacitive) touch technology |
| Touch points | 10 |
| Colour | Black, White |
| Additional software | embed (annual licence), No additional software |
